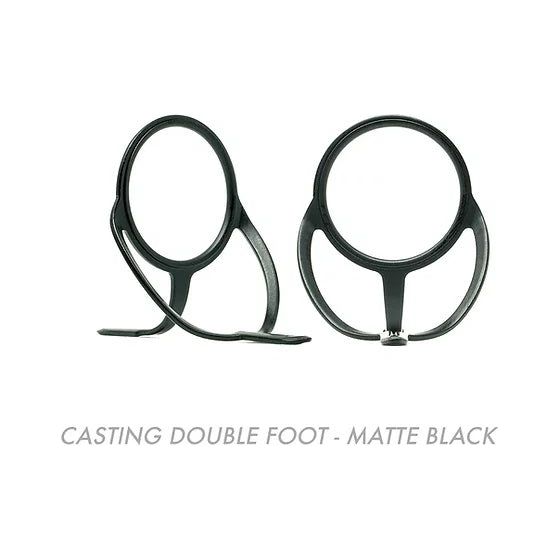

VABBC - Vortex Air Matte Black Frame/Matte Black Ring Casting Double Foot Guide

$0.80 USD
$0.80 USD
Sale Sold out
Shipping calculated at checkout.
Size
  • Light weight, strong flexible frames
  • Atlas Stainless Steel Frames
  • zero ring loss
  • black frames with black ss rings options
  • ideally pairs with Delta tops
Matte Black Chrome Height A Height B Height C Weight Ring ID Foot Total Length
VABBC-6 VAC-6 5.25 mm 10.55 mm 11.90 mm 0.4 gm 5.30 mm 7.25 mm 20.70 mm
VABBC-8 VAC-8 5.60 mm 12.75 mm 14.80 mm 0.6 gm 7.15 mm 7.25 mm 19.50 mm
VABBC-10 VAC-10 6.30 mm 15.40 mm 16.50 mm 0.8 gm 9.10 mm 9.00 mm 24.00 mm
VABBC-12 VAC-12 7.00 mm 17.75 mm 19.60 mm 1.1 gm 10.75 mm 9.00 mm 26.80 mm
VABBC-16 VAC-16 8.60 mm 22.50 mm 24.40 mm 1.9 gm 13.90 mm 12.00 mm 36.00 mm
VABBC-20 VAC-20 10.80 mm 28.60 mm 30.75 mm 2.7 gm 17.80 mm 12.00 mm 43.50 mm
VABBC-25 VAC-25 14.00 mm 36.70 mm 38.40 mm 4.4 gm 22.70 mm 14.40 mm 53.15 mm
VABBC-30 VAC-30 14.00 mm 42.90 mm 45.23 mm 6.0 gm 28.90 mm 16.00 mm 58.85 mm
VABBC-40 VAC-40 17.30 mm 51.45 mm 54.20 mm 9.7 gm 35.15 mm 19.15 mm 70.80 mm
VABBC-50 VAC-50 24.60 mm 70.70 mm 73.60 mm 17.8 gm 46.10 mm 25.25 mm 88.60 mm
