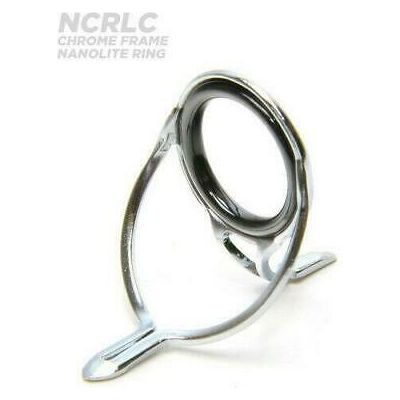

NCRLC - Nanolite Chrome Casting & Stripping Guides
Couldn't load pickup availability
Ring Lock Casting
- Feather light frame locks ring in and offers tremendous weight to strength ratio - shorter foot means smaller wraps
- Ring Lock™ frame increases the contact area around the diameter of the insert
- ATLAS™ stainless steel offers amazing corrosion protection and unparalleled strength
- Quad Leg design greatly reduces ring-popping lateral torque by increasing the frame's strength and stability
Height A: Bottom of the foot to bottom of the ring ID
Height B: Bottom of the foot to top of ring ID
Height C: Total guide height
|
NANOLITE RING |
|
|
|||||||
|
Model |
Model |
Model |
Height A |
Height B |
Height C |
Weight |
Ring ID |
Foot Length |
Total Length |
|
NBRLC-6 |
NTRLC-6 |
NCRLC-6 |
2.73 mm |
7.13 mm |
8.48 mm |
0.2 gm |
4.40 mm |
4.30 mm |
15.66 mm |
|
NBRLC-7 |
NTRLC-7 |
NCRLC-7 |
3.6 mm |
8.2 mm |
9.80 mm |
0.3 gm |
4.6 mm |
4.89 mm |
17.39 mm |
|
NBRLC-8 |
NTRLC-8 |
NCRLC-8 |
4.22 mm |
10.22 mm |
11.78 mm |
0.4 gm |
5.8 mm |
5.02 mm |
18.51 mm |
|
NBRLC-10 |
NTRLC-10 |
NCRLC-10 |
5.1 mm |
12.74 mm |
14.81 mm |
0.6 gm |
7.64 mm |
5.5 mm |
20.8 mm |
|
NBRLC-12 |
NTRLC-12 |
NCRLC-12 |
5.7 mm |
14.9 mm |
16.25 mm |
1.0 gm |
9.2 mm |
5.75 mm |
24.5 mm |
|
NBRLC-16 |
NTRLC-16 |
NCRLC-16 |
8 mm |
19.6 mm |
22.01 mm |
1.6 gm |
11.6 mm |
8 mm |
31 mm |
|
NBRLC-20 |
NTRLC-20 |
NCRLC-20 |
11.8 mm |
29.41 mm |
28.88 mm |
3.2 gm |
14.88 mm |
12.13 mm |
44.8 mm |
