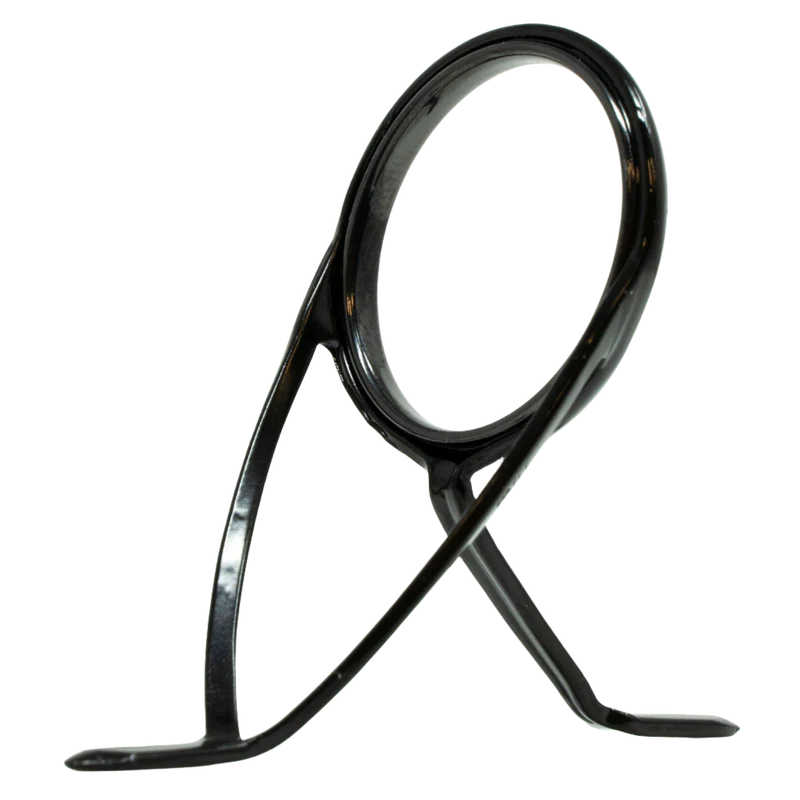

NBTDF - TiForged Double Foot Spin/Cast Guides TDF Nanolite Ring with Black Frame
Couldn't load pickup availability
- 316SS or solid Titanium alloy frames
- Snagless frame designs in spinning and casting configurations
- Hardened frames for extreme strength, keeping rings secure and safe from frame deformation
- Slim ring design to reduce weight and polished round for increased casting distances and extended line life
- Available with American Tackle proprietary Nanolite or Duralite ring options
- American Tackle's ceramic rings provide a near zero coefficient of friction with wet line — extending line life while increasing hardness to that of Silicone Carbide (SiC)
|
NANOLITE RING |
|
|
|
|||||
|
Model |
Height A |
Height B |
Height C |
Weight |
Ring ID |
Foot 1 |
Foot 2 |
Total Length |
|
NITDF-5.5 |
2.60 mm |
6.15 mm |
7.40 mm |
0.17 gm |
2.75 mm |
5.00mm |
5.00 mm |
19.00 mm |
|
NITDF-6 |
3.05 mm |
7.00 mm |
8.50 mm |
0.24 gm |
4.25 mm |
5.50 mm |
5.00 mm |
20.20 mm |
|
NITDF-7 |
3.55 mm |
8.15 mm |
9.80 mm |
0.31 gm |
4.90 mm |
5.50 mm |
5.50 mm |
21.80 mm |
|
NITDF-8 |
4.85 mm |
10.05 mm |
12.40 mm |
0.40 gm |
5.85 mm |
5.50 mm |
5.50 mm |
24.20 mm |
|
NITDF-10 |
5.50 mm |
12.50 mm |
15.20 mm |
0.64 gm |
7.75 mm |
7.00 mm |
6.50 mm |
26.50 mm |
|
NITDF-12 |
6.00 mm |
14.15 mm |
23.00 mm |
1.00 gm |
9.15 mm |
10.00 mm |
9.00 mm |
39.00 mm |
|
NITDF-16 |
8.45 mm |
17.80 mm |
23.00 mm |
1.77 gm |
11.60 mm |
10.00 mm |
9.00 mm |
39.00 mm |
|
NITDF-20 |
10.15 mm |
24.25 mm |
29.00 mm |
2.60 gm |
15.00 mm |
12.20 mm |
11.00 mm |
51.00 mm |
|
NITDF-25 |
22.60 mm |
40.00 mm |
44.50 mm |
4.90 gm |
19.30 mm |
15.00 mm |
15.00 mm |
59.00 mm |
|
NITDF-30 |
34.15 mm |
56.75 mm |
64.00 mm |
7.20 gm |
24.90 mm |
16.50 mm |
16.00 mm |
68.00 mm |
|
NITDF-30L |
24.00 mm |
47.30 mm |
49.50 mm |
6.70 gm |
25.10 mm |
15.00 mm |
15.00 mm |
63.70 mm |
|
NITDF-40L |
30.50 mm |
57.30 mm |
62.00 mm |
11.00 gm |
29.60 mm |
18.00 mm |
18.50 mm |
90.50 mm |
|
NITDF-50L |
32.60 mm |
74.80 mm |
80.00 mm |
21.00 gm |
40.40 mm |
24.00 mm |
24.50 mm |
105.00 mm |
