HLSFC - Halide Chrome RIng Single Foot Guides
Couldn't load pickup availability

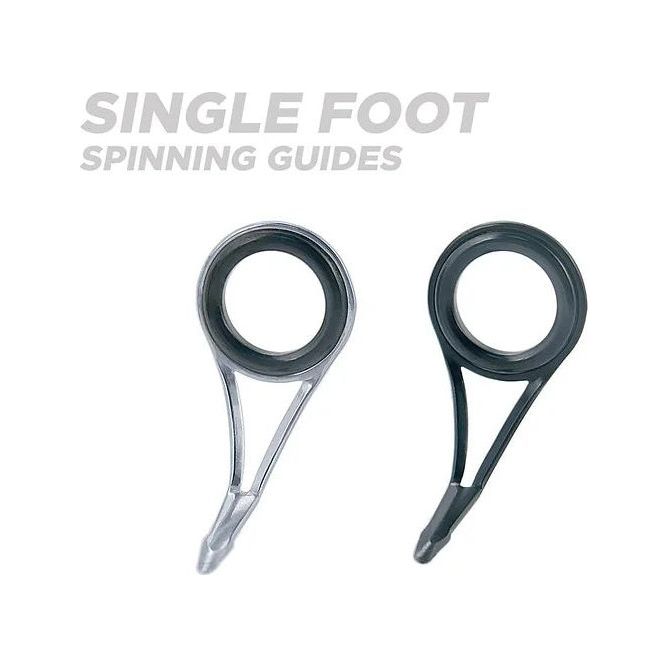

Halide Ring
Single Foot Spinning Guides
- One piece stamped stainless steel frame
- Single foot double leg design is ideal for ultra-light to med-heavy spinning rods
- Offered in American Tackle’s “Atlas” frame, the most corrosion resistant SS frame offered
- Premium quality Halide rings
Measurement Key:
Height A: Bottom of the foot to bottom of the ring ID
Height B: Bottom of the foot to top of ring ID
Height C: Total guide height
|
HALIDE RING W/ POLISHED FRAME |
|||||||
|
Model |
Height A |
Height B |
Height C |
Weight |
Ring ID |
Foot Length |
Total Length |
|
HLSFC-6 |
4.86 mm |
8.28 mm |
10.29 mm |
0.1 gm |
3.69 mm |
6.9 mm |
12.44 mm |
|
HLSFC-7 |
5.52 mm |
9.13 mm |
12.39 mm |
0.3 gm |
4.62 mm |
7.15 |
14.2 mm |
|
HLSFC-8 |
6.67 mm |
12.09 mm |
14.33 mm |
0.3 gm |
5.57 mm |
9.8 mm |
17 mm |
|
HLSFC-10 |
7.33 mm |
14.35 mm |
16.65 mm |
0.6 gm |
6.91 mm |
9.31 mm |
17.2 mm |
|
HLSFC-12 |
10.04 mm |
17.79 mm |
20.44 mm |
0.8 gm |
8.12 mm |
11.8 mm |
23.15 mm |
|
HLSFC-16 |
12.79 mm |
22.86 mm |
26.26 mm |
1.1 gm |
10.58 mm |
15.5 mm |
27.45 mm |
|
HLSFC-20 |
16.08 mm |
28.52 mm |
32.82 mm |
2.2 gm |
13.85 mm |
17.3 mm |
32.6 mm |
|
HLSFC-25 |
17.96 mm |
36.18 mm |
40.26 mm |
3.8 gm |
17.88 mm |
20.3 mm |
37.8 mm |
|
HLSFC-30 |
23.75 mm |
44.74 mm |
51.42 mm |
5.8 gm |
23.15 mm |
23.4 mm |
43.1 mm |
