Casting/Spinning Guides

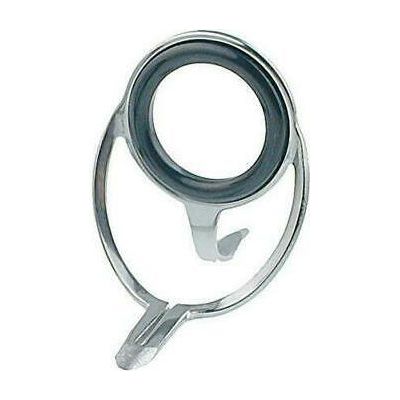

• One piece stamped stainless steel frame Ideal for light to medium heavy rods
• Available with TiCH, Polished and Black Chrome frames
• Offered in American Tackle’s “Atlas” frame, the most corrosion resistant SS frame offered
Measurement Key:
Height A: Bottom of the foot to bottom of the ring ID
Height B: Bottom of the foot to top of ring ID
Height C: Total guide height
POLISHED FRAME |
|
|
|
||||
Model |
Height A |
Height B |
Height C |
Weight |
Ring ID |
Foot Length |
Total Length |
HLCC-6 |
4.30 mm |
7.75 mm |
10.14 mm |
0.3 gm |
3.80 mm |
4.95 mm |
16.50 mm |
HLCC-8 |
5.77 mm |
10.69 mm |
13.53 mm |
0.5 gm |
5.60 mm |
6.25 mm |
17.65 mm |
HLCC-10 |
6.76 mm |
12.52 mm |
16.00 mm |
0.8 gm |
6.90 mm |
7.25 mm |
21.75 mm |
HLCC-12 |
8.32 mm |
15.40 mm |
18.63 mm |
1.3 gm |
8.20 mm |
8.58 mm |
26.35 mm |
HLCC-16 |
8.78 mm |
18.00 mm |
21.60 mm |
1.9 gm |
10.58 mm |
9.50 mm |
33.50 mm |
HLCC-20 |
12.00 mm |
23.00 mm |
30.15 mm |
3.2 gm |
14.00 mm |
13.50 mm |
40.22 mm |
HLCC-25 |
14.75 mm |
29.85 mm |
36.20 mm |
5.0 gm |
17.70 mm |
14.60 mm |
51.50 mm |
HLCC-30 |
19.50 mm |
41.40 mm |
47.38 mm |
7.6 gm |
23.48 mm |
16.75 mm |
56.25 mm |
HLCC-40 |
24.00 mm |
47.10 mm |
55.25 mm |
16.0 gm |
28.08 mm |
18.50 mm |
77.50 mm |
