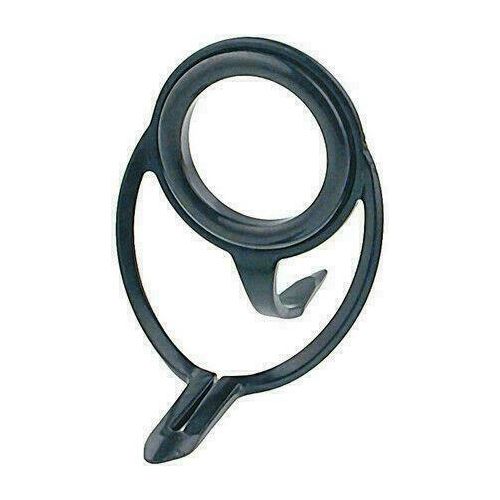

HLC - HALIDE BLACK CASTING & SPINNING GUIDES 1 PER ORDER

BLACK FRAME

Model

Height A

Height B

Height C

Weight

Ring ID

Foot Length

Total Length

HLC-6

4.30 mm

7.75 mm

10.14 mm

0.3 gm

3.80 mm

4.95 mm

16.50 mm

HLC-8

5.77 mm

10.69 mm

13.53 mm

0.5 gm

5.60 mm

6.25 mm

17.65 mm

HLC-10

6.76 mm

12.52 mm

16.00 mm

0.8 gm

6.90 mm

7.25 mm

21.75 mm

HLC-12

8.32 mm

15.40 mm

18.63 mm

1.3 gm

8.20 mm

8.58 mm

26.35 mm

HLC-16

8.78 mm

18.00 mm

21.60 mm

1.9 gm

10.58 mm

9.50 mm

33.50 mm

HLC-20

12.00 mm

23.00 mm

30.15 mm

3.2 gm

14.00 mm

13.50 mm

40.22 mm

HLC-25

14.75 mm

29.85 mm

36.20 mm

5.0 gm

17.70 mm

14.60 mm

51.50 mm

HLC-30

19.50 mm

41.40 mm

47.38 mm

7.6 gm

23.48 mm

16.75 mm

56.25 mm

HLC-40

24.00 mm

47.10 mm

55.25 mm

16.0 gm

28.08 mm

18.50 mm

77.50 mm
