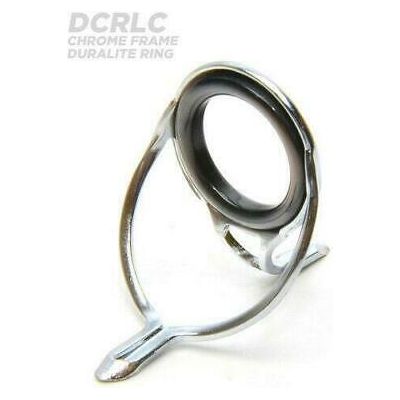

DCRLC - DURALITE CHROME CASTING/STRIPING GUIDES

DURALITE RING

Model

Model

Height A

Height B

Height C

Weight

Ring ID

Foot Length

Total Length

DBRLC-6

DCRLC-6

3.16 mm

7.07 mm

8.69 mm

0.3 gm

3.91 mm

4.30 mm

15.66 mm

DBRLC-7

DCRLC-7

3.85 mm

8.51 mm

9.80 mm

0.4 gm

4.66 mm

4.89 mm

17.39 mm

DBRLC-8

DCRLC-8

4.5 mm

9.86 mm

11.76 mm

0.4 gm

5.36 mm

5.02 mm

18.51 mm

DBRLC-10

DCRLC-10

4.8 mm

11.88 mm

14.60 mm

0.7 gm

7.08 mm

5.5 mm

20.8 mm

DBRLC-12

DCRLC-12

6.1 mm

14.44 mm

16.66 mm

1.10 gm

8.34 mm

5.75 mm

24.5 mm

DBRLC-16

DCRLC-16

8.79 mm

19.31 mm

21.46 mm

2.0 gm

10.52 mm

8 mm

31 mm

DBRLC-20

DCRLC-20

12.95 mm

26.9 mm

28.88 mm

3.6 gm

13.95 mm

12.13 mm

44.8 mm
