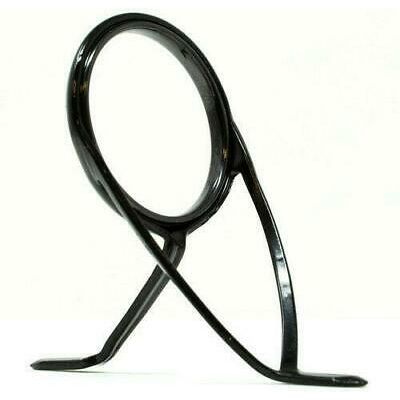

DBTDF - Duralite TiForged Light/Heavy Black Ringlock Snagless Guides
Couldn't load pickup availability
- 316SS or solid Titanium alloy frames
- Snagless frame designs in spinning and casting configurations
- Hardened frames for extreme strength, keeping rings secure and safe from frame deformation.
- Design to reduce weight and polished round for increased casting distances and extended line life
- Special orders available in; TiCH, Blue, Rose, Holographic, and Gold rings and frame combinations (as well as Gunsmoke frames).
- Available with American Tackle proprietary Nanolite or Duralite ring options
- American Tackle’s colored rings provide a near zero coefficient of friction with wet line– extending line life while increasing hardness to that of Silicone Carbide(SiC)
Height A: Bottom of the foot to bottom of the ring ID
Height B: Bottom of the foot to top of ring ID
Height C: Total guide height
Tiforged (TDF, TDF-L) - SS Frame - Duralite Ring
|
DURALITE RING |
|
|
|
||||||
|
Black |
Polished |
Height A |
Height B |
Height C |
Weight |
Ring ID |
Foot 1 |
Foot 2 |
Total Length |
|
DBTDF-5.5 |
DPTDF-5.5 |
2.60 mm |
6.15 mm |
7.40 mm |
0.25 gm |
3.50 mm |
5.00mm |
5.00 mm |
19.00 mm |
|
DBTDF-6 |
DPTDF-6 |
3.05 mm |
7.00 mm |
8.50 mm |
0.33 gm |
4.00 mm |
5.50 mm |
5.00 mm |
20.20 mm |
|
DBTDF-7 |
DPTDF-7 |
3.55 mm |
8.15 mm |
9.80 mm |
0.53 gm |
4.95 mm |
5.50 mm |
5.50 mm |
21.80 mm |
|
DBTDF-8 |
DPTDF-8 |
4.85 mm |
10.05 mm |
12.40 mm |
0.70 gm |
5.60 mm |
5.50 mm |
5.50 mm |
24.20 mm |
|
DBTDF-10 |
DPTDF-10 |
5.50 mm |
12.50 mm |
15.20 mm |
1.15 gm |
7.40 mm |
7.00 mm |
6.50 mm |
26.50 mm |
|
DBTDF-12 |
DPTDF-12 |
6.00 mm |
14.15 mm |
23.00 mm |
1.50 gm |
8.85 mm |
10.00 mm |
9.00 mm |
39.00 mm |
|
DBTDF-16 |
DPTDF-16 |
8.45 mm |
17.80 mm |
23.00 mm |
2.60 gm |
11.00 mm |
10.00 mm |
9.00 mm |
39.00 mm |
|
DBTDF-20 |
DPTDF-20 |
10.15 mm |
24.25 mm |
29.00 mm |
4.10 gm |
14.46 mm |
12.20 mm |
11.00 mm |
51.00 mm |
|
DBTDF-25 |
DPTDF-25 |
22.60 mm |
40.00 mm |
44.50 mm |
7.90 gm |
18.75 mm |
15.00 mm |
15.00 mm |
59.00 mm |
|
DBTDF-30 |
DPTDF-30 |
34.15 mm |
56.75 mm |
64.00 mm |
11.00 gm |
24.60 mm |
16.50 mm |
16.00 mm |
68.00 mm |
|
DBTDF-30L |
DPTDF-30L |
24.30 mm |
47.00 mm |
49.50 mm |
9.60 gm |
24.60 mm |
15.00 mm |
15.00 mm |
63.70 mm |
|
DBTDF-40L |
DPTDF-40L |
31.00 mm |
56.80 mm |
62.00 mm |
17.2 gm |
28.60 mm |
18.00 mm |
18.50 mm |
90.50 mm |
|
DBTDF-50L |
DPTDF-50L |
32.60 mm |
74.80 mm |
80.00 mm |
24.00 gm |
40.40 mm |
24.00 mm |
24.50 mm |
105.00 mm |
