DBMW30 - Duralite Microwave 30 Black Spinning Guide Set
Couldn't load pickup availability

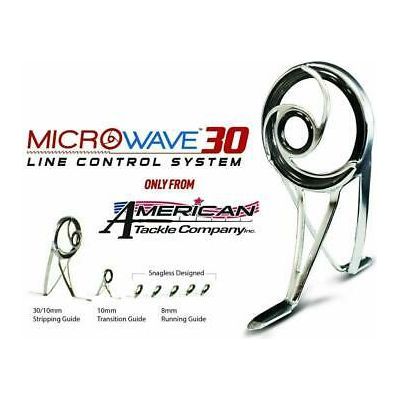

MW30 / MW30 Tidal Wave
Heavy Freshwater / Inshore Saltwater / Surf / Carp / Light-Heavy Offshore
• Snagless Design• Passes leader knots of all sizes
• Single foot 8mm or double foot 10mm running guide options
Measurement Key:
Height A: Bottom of the foot to bottom of the ring ID
Height B: Bottom of the foot to top of ring ID
Height C: Total guide height
MICROWAVE 30 - Duralite
DURALITE RING |
|
|
|
|||||
Model |
Height A |
Height B |
Height C |
Weight |
Ring ID |
Foot 1 |
Foot 2 |
Total Length |
DBMW-30/10 |
40.15 mm |
45.75 mm |
60.10 mm |
11.00 gm |
24.66 mm |
17.00 mm |
16.80 mm |
67.00 mm |
DBMW30-10T |
12.75 mm |
19.60 mm |
22.20 mm |
1.40 gm |
7.36 mm |
11.50 mm |
10.30 mm |
32.50 mm |
DBMW30-8 |
4.85 mm |
10.30 mm |
11.40 mm |
0.50 gm |
5.58 mm |
8.75 mm |
N/A |
14.35 mm |
DCMW-30/10 |
40.15 mm |
45.75 mm |
60.10 mm |
11.00 gm |
24.66 mm |
17.00 mm |
16.80 mm |
67.00 mm |
DCMW30-10T |
12.75 mm |
19.60 mm |
22.20 mm |
1.40 gm |
7.36 mm |
11.50 mm |
10.30 mm |
32.50 mm |
DCMW30-8 |
4.85 mm |
10.30 mm |
11.40mm |
0.50 gm |
5.58 mm |
8.75 mm |
N/A |
14.35 mm |
DGMW-30/10 |
40.15 mm |
45.75 mm |
60.10 mm |
11.00 gm |
24.66 mm |
17.00 mm |
16.80 mm |
67.00 mm |
DGMW30-10T |
12.75 mm |
19.60 mm |
22.20 mm |
1.40 gm |
7.36 mm |
11.50 mm |
10.30 mm |
32.50 mm |
DGMW30-8 |
4.85 mm |
10.30 mm |
11.40 mm |
0.50 gm |
5.58 mm |
8.75 mm |
N/A |
14.35 mm |
