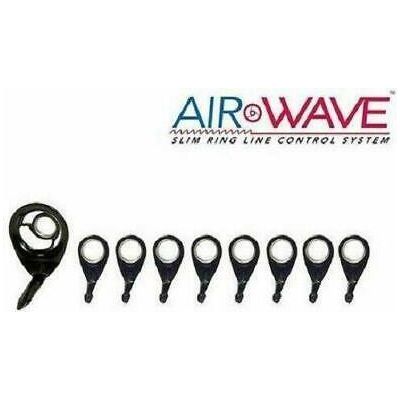

AWB-SET-C Airwave Slim Ring Line Control Casting Guide Set Black
Couldn't load pickup availability
The MicroWave Air™ slim ring guide system was specifically designed to offer the same line control and casting accuracy as the award winning MicroWave guides with the added benefit of an ultra-light ringless design.
- Snagless design
- Designed for extreme durability and Performance
- Zero ring loss
- Crush Proof frames
- Reduced guide weight
Height A: Bottom of the foot to bottom of the ring ID
Height B: Bottom of the foot to top of ring ID
Height C: Total guide height
MICROWAVE AIR - SPINNING
|
Black |
Chrome |
Height A |
Height B |
Height C |
Weight |
Ring ID |
Foot 1 |
Total Length |
|
AWB-20/6 |
AW-20/6 |
32.00 mm |
37.20 mm |
45.70 mm |
2.70 gm |
16.75 mm |
15.25 mm |
36.50 mm |
|
AWB-6T |
AW-6T |
12.50 mm |
17.50 mm |
18.55 mm |
0.60 gm |
4.95 mm |
9.50 mm |
17.00 mm |
|
AWB-5 |
AW-5 |
4.50 mm |
8.30 mm |
9.05 mm |
0.20 gm |
3.90 mm |
7.00 mm |
12.25 mm |
MICROWAVE AIR - CASTING
|
Black |
Chrome |
Height A |
Height B |
Height C |
Weight |
Ring ID |
Foot 1 |
Total Length |
|
AWB-10/5 |
AW-10/5 |
7.15 mm |
11.00 mm |
16.00 mm |
0.90 gm |
8.95 mm |
7.00 mm |
18.75 mm |
|
AWB-5 |
AW-5 |
4.50 mm |
8.30 mm |
9.05 mm |
0.20 gm |
3.90 mm |
7.00 mm |
12.25 mm |
